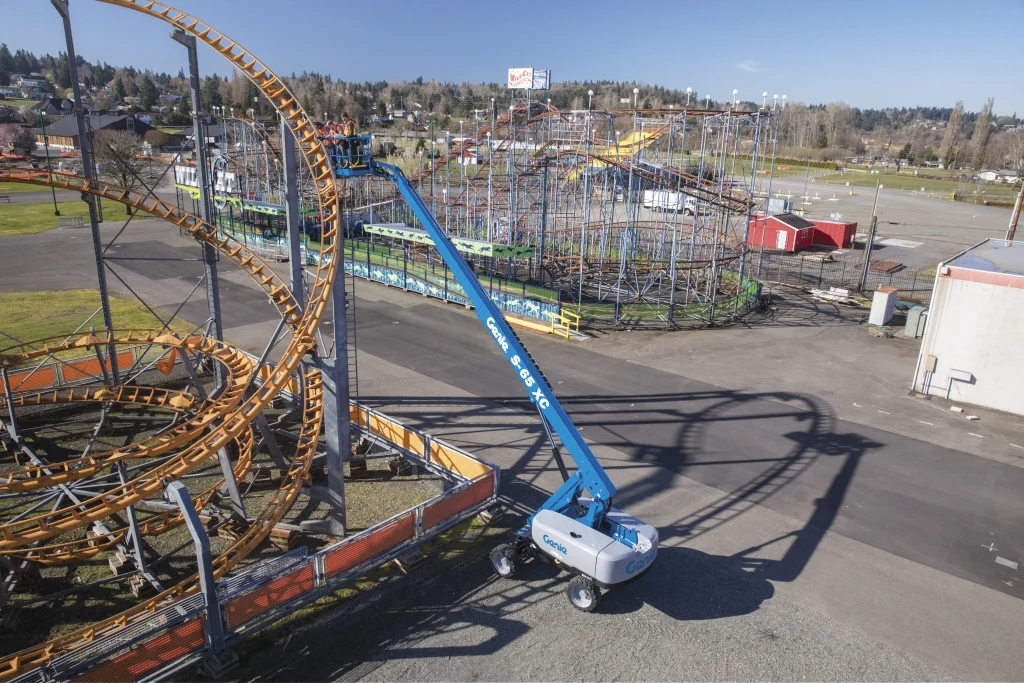

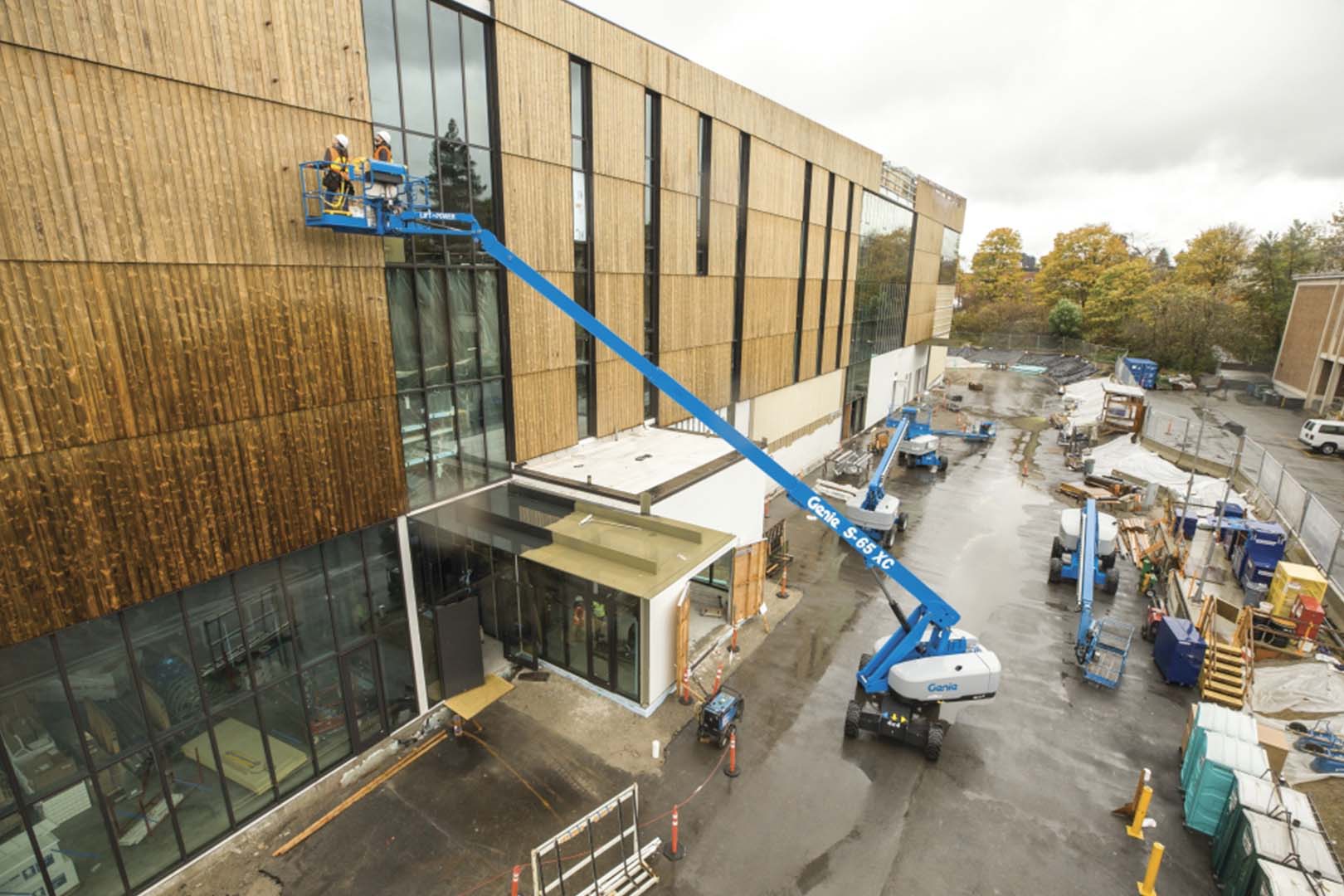

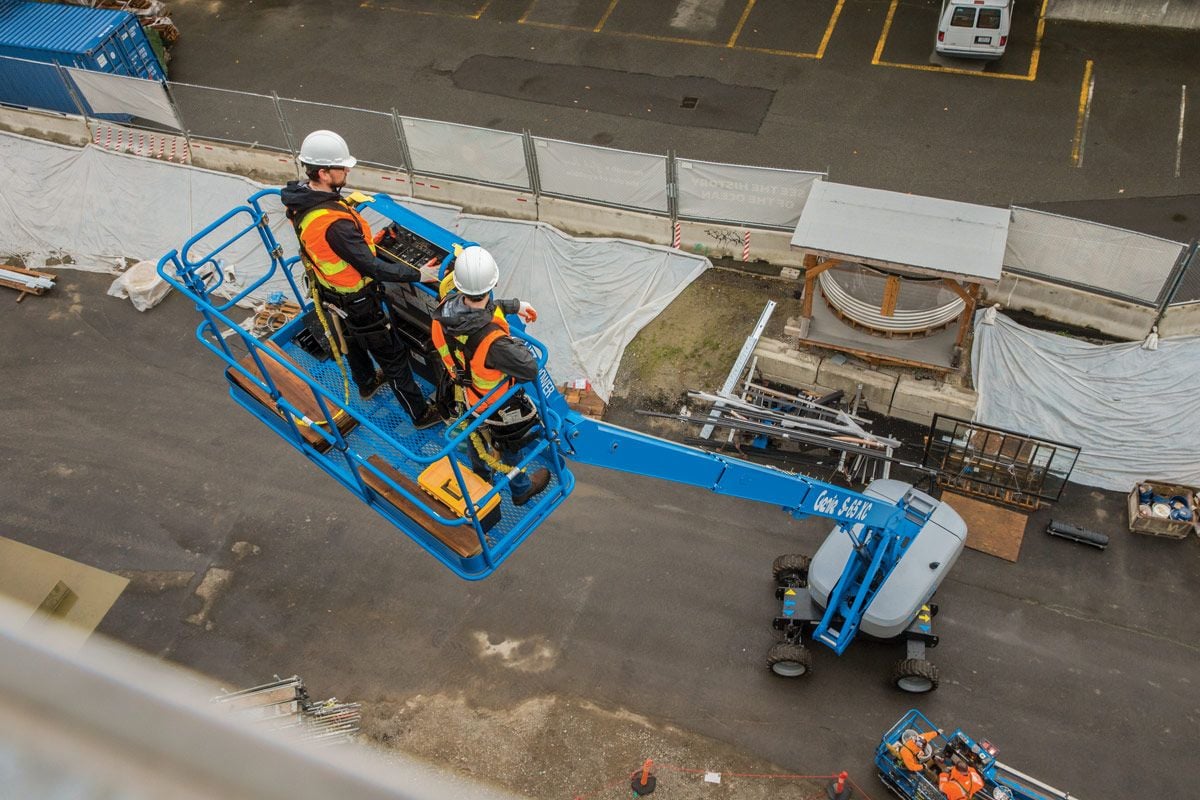

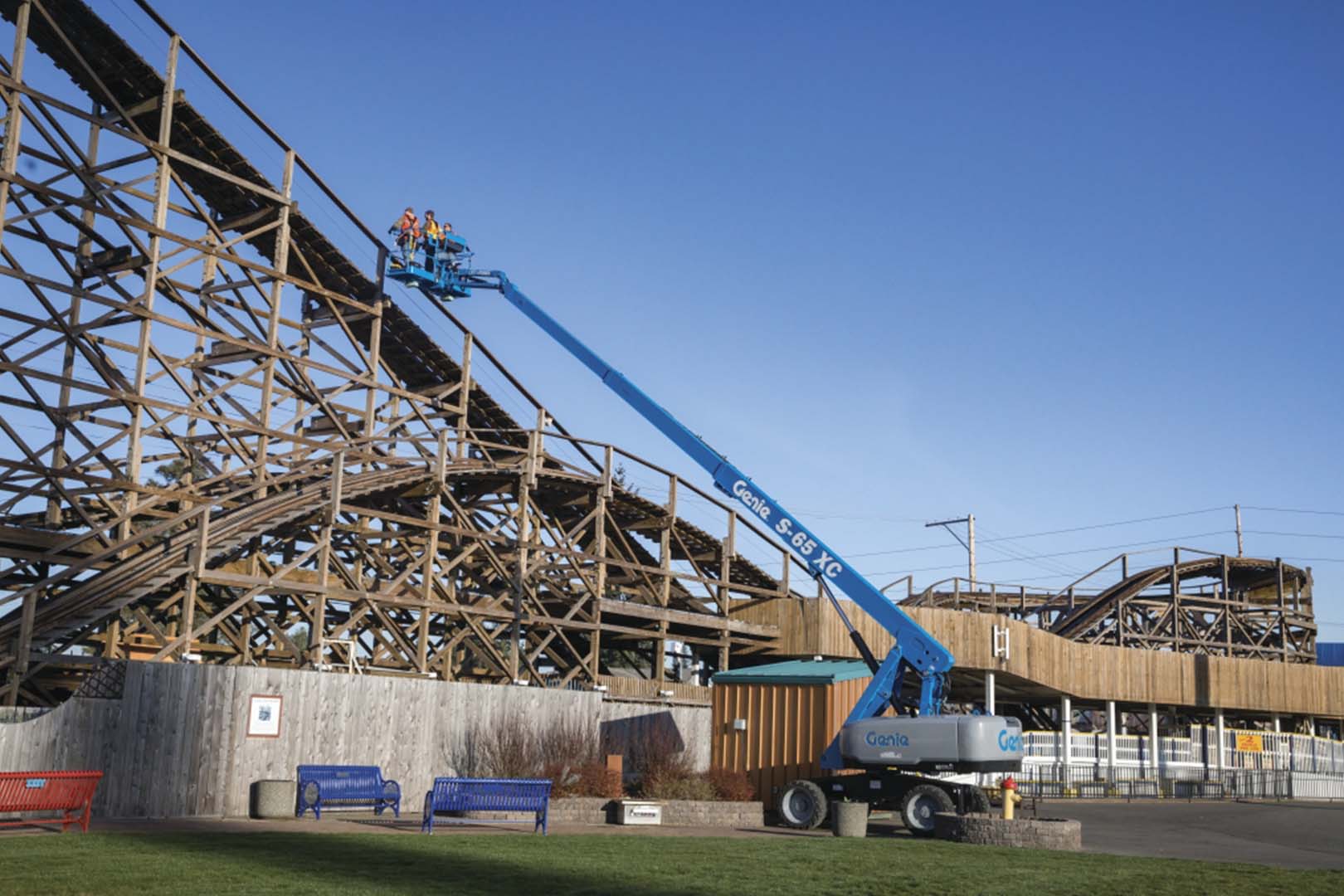

65 ft Rough Terrain Boom, Diesel Straight

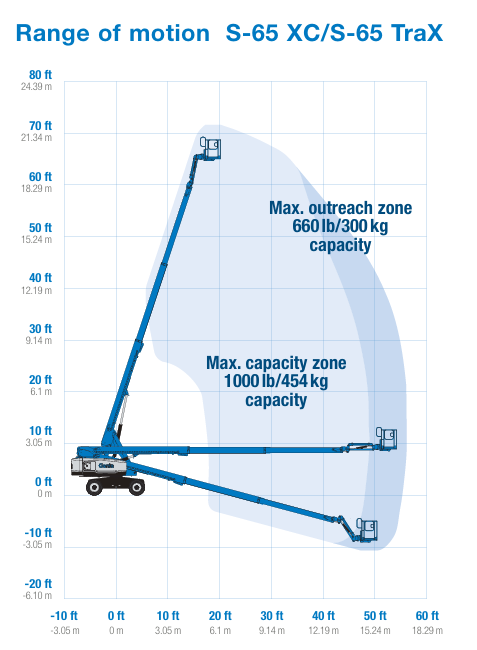

Working Height: 71 ft 6 in

Platform Height: 65 ft 6 in

Horizontal Reach: 56 ft 2 in

Platform Capacity: 500 lbs

Machine Width: 8 ft 2 in

Machine Length: 30 ft 11 in

Stowed Height: 8 ft 11 in

Operating Weight: 22,100–22,300 lbs

Ground Clearance: 14.5 in

Power Source: Diesel

Engine: Deutz Tier 4 Final

Drive Type: 4WD Rough Terrain

Gradeability: 45%

Platform Rotation: 160°

Best For

Commercial constructionSteel erectionIndustrial maintenanceExterior building workSign installationLong-reach access applications

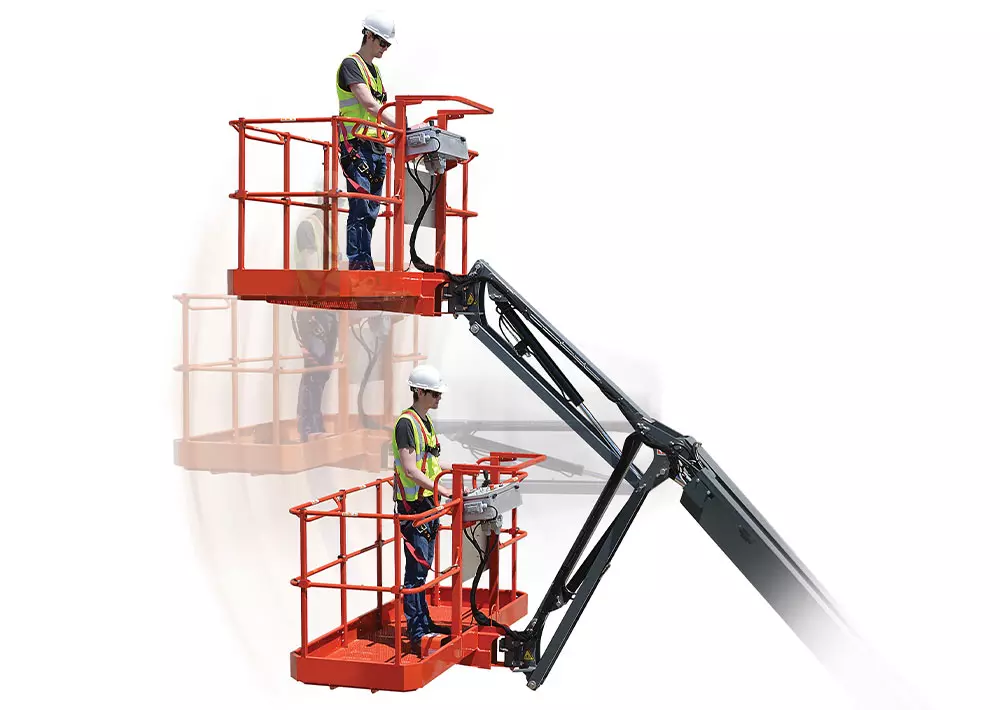

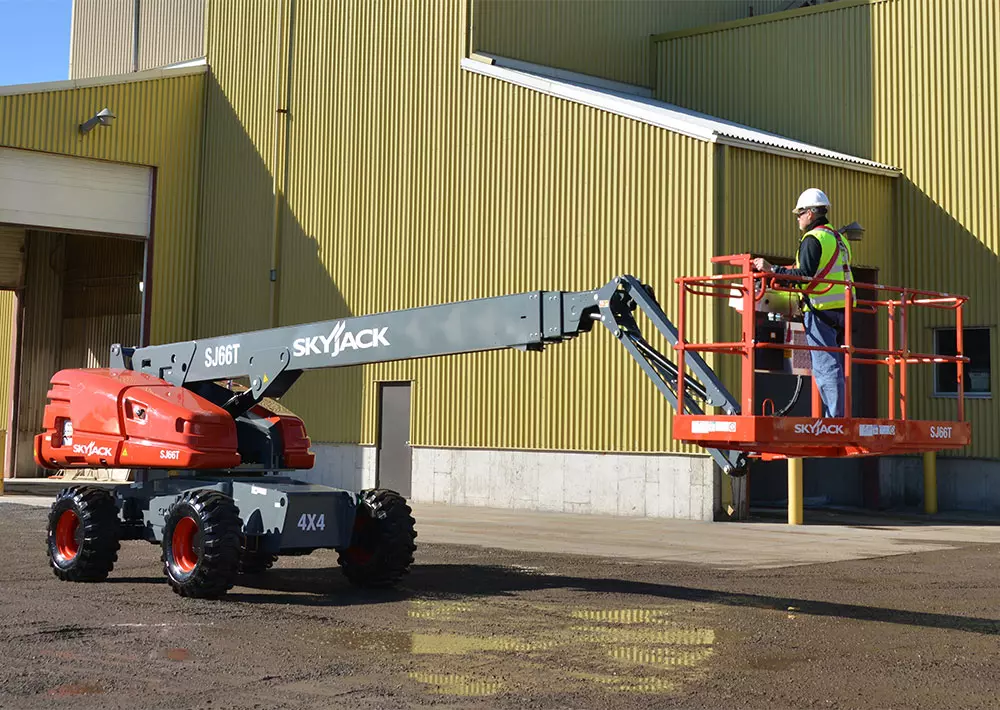

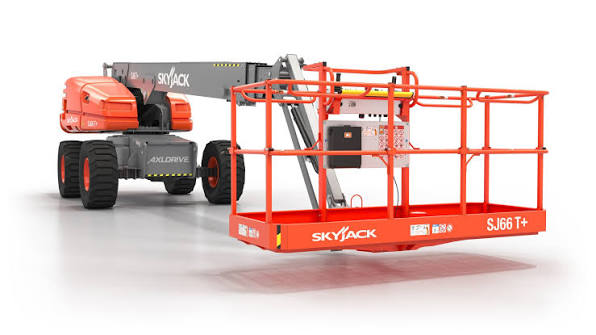

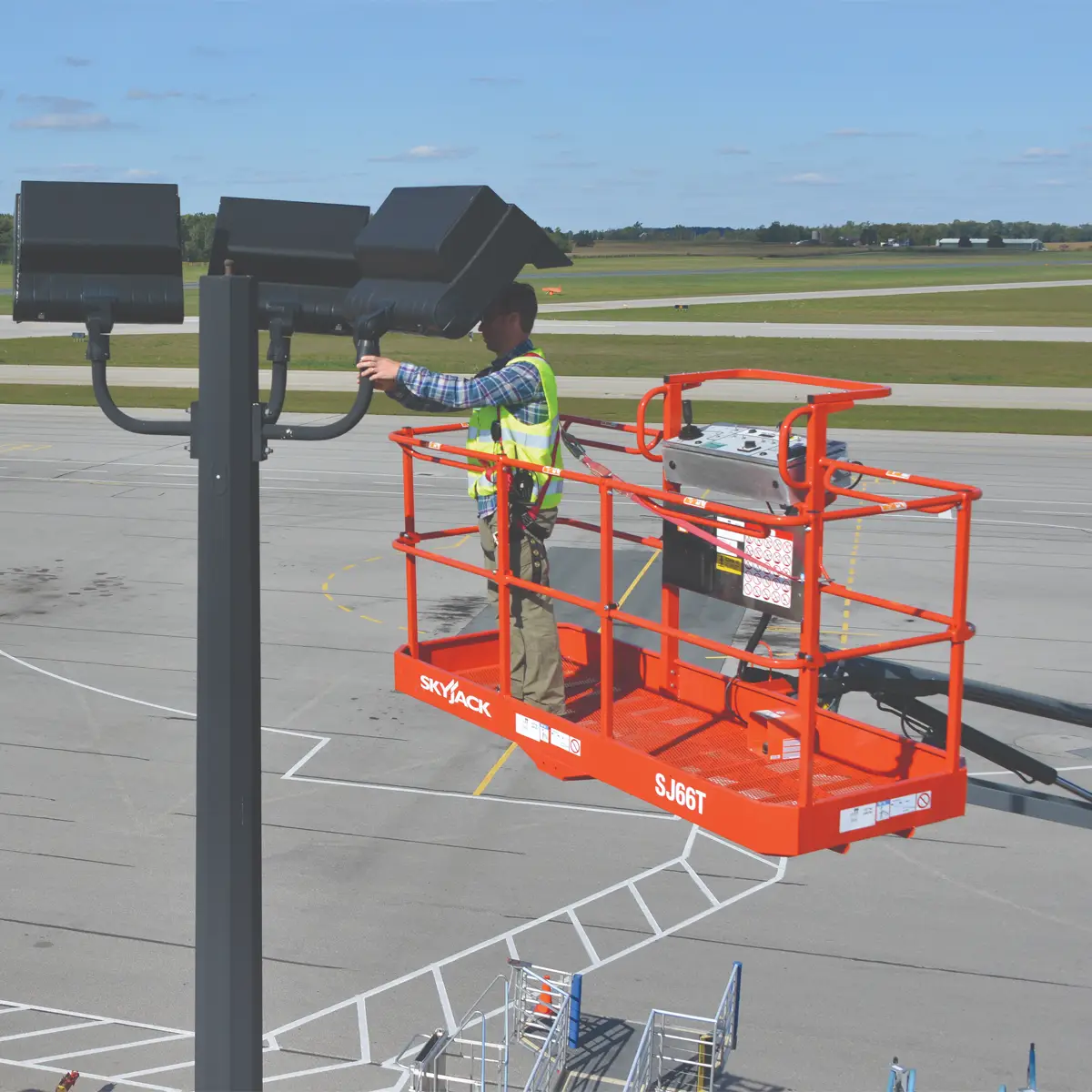

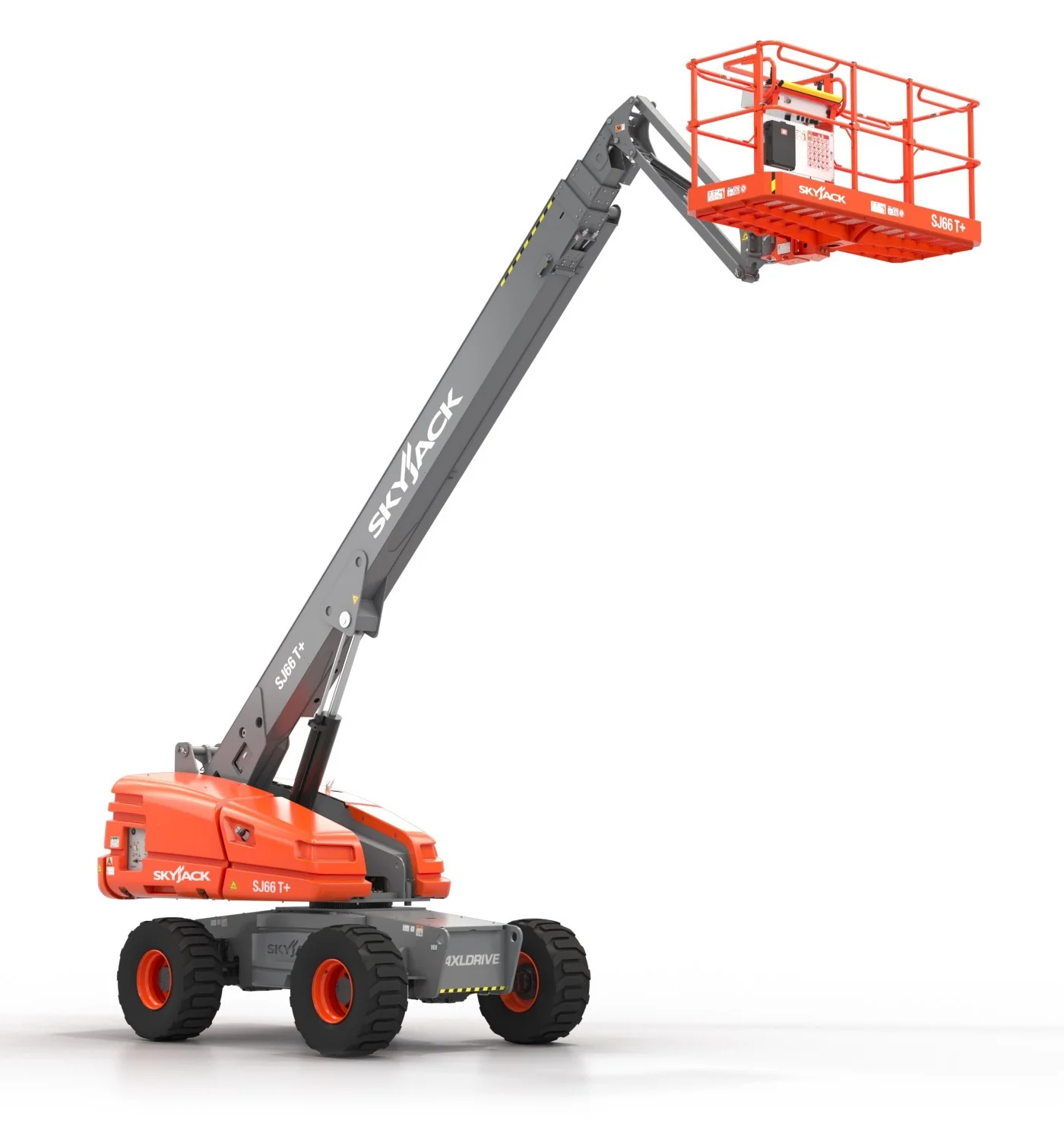

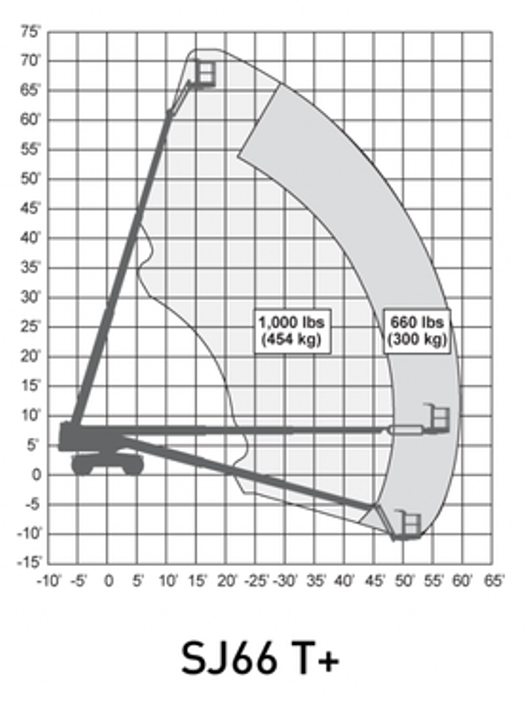

Working Height: 72 ft

Platform Height: 66 ft

Horizontal Reach: 57 ft

Platform Capacity: 500 lbs

Jib Length: 5 ft

Machine Width: 8 ft

Machine Length: 33 ft 11 in

Stowed Height: 8 ft 5 in

Operating Weight: 26,700 lbs

Ground Clearance: 16 in

Power Source: Diese

lEngine: Deutz 74 HP

Drive Type: 4WD Rough Terrain

Gradeability: 50%

Platform Rotation: 170°

Best For

Steel erectionStructural and commercial constructionIndustrial maintenanceExterior building workLong-reach access applicationsHigh-reach material and installation projects
