Telehandler, 10000 lb, 54-56 ft Reach

Available for quote from Apache Equipment Rentals in Phoenix, Arizona.

Material Handling

Telehandler, 10000 lb, 54-56 ft Reach

Rent a reachfork, 10000lbs, 54-56ft reach for construction, maintenance, and job site work.

Listed equipment specifications
Height (ft)	56
Capacity (lbs)	10000

Models in our catalog

JLG G10-55AGENIE GTH1056JCB 510-56SKYJACK SJ1056THSKYTRAK 10054

Contact Apache to confirm the available model and specifications for your job. A quote request does not reserve equipment.

Browse Material Handling

Model Specifications & Photos

Model reference specifications and photos. Confirm the exact model, configuration and availability with Apache. Ratings may vary by model year and options; use the machine’s approved manual and load chart. Catalog names can differ from detailed model ratings.

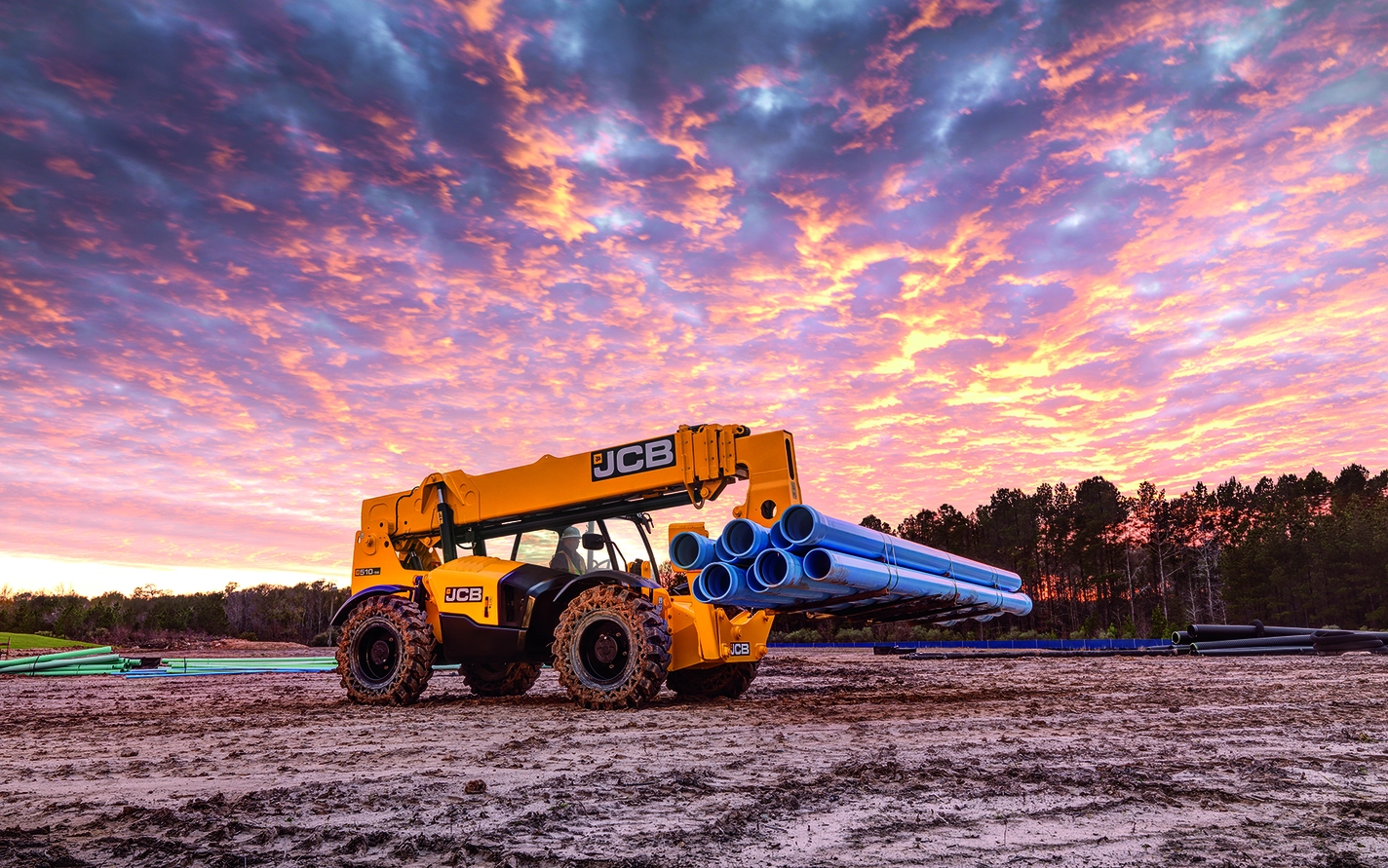

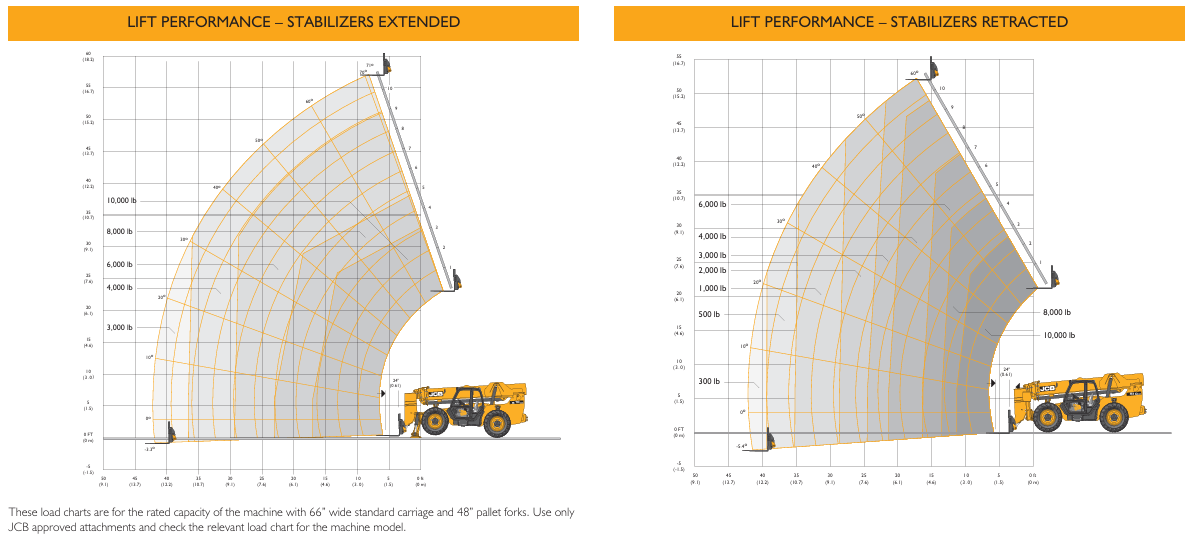

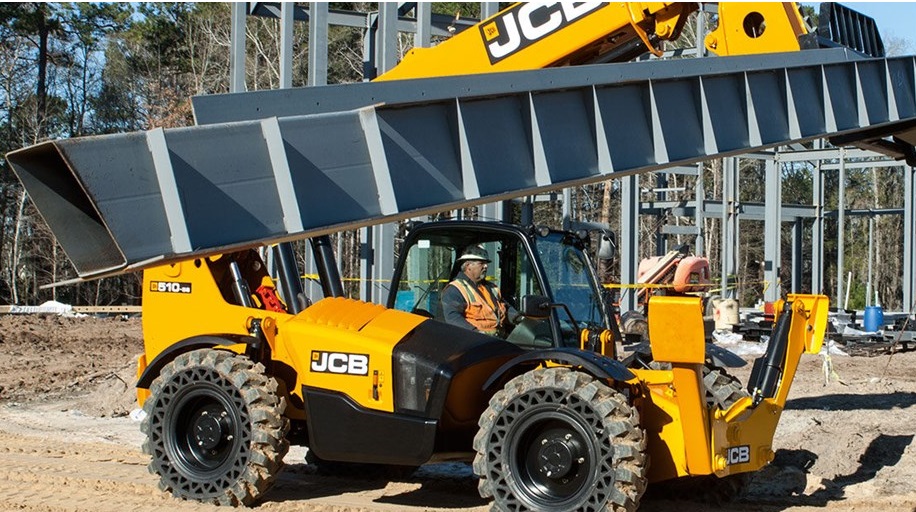

JCB 510-56 Telehandler, 10,000 lbs Reachfork, 56ft Reach

JCB 510-56 Telehandler, 10,000 lbs Reachfork

Maximum Lift Height: 56 ft

Maximum Lift Capacity: 10,000 lbs

Maximum Forward Reach: 42 ft

Capacity at Max Height: 4,000 lbs (with stabilizers)

Capacity at Max Reach: 3,000 lbs (with stabilizers)

Machine Width: 8 ft 2 in

Machine Length: 21 ft 8 in

Machine Height: 8 ft 10 in

Operating Weight: 29,900 lbs

Ground Clearance: 17.5 in

Power Source: Diesel

Engine: JCB EcoMAX 74 HP

Drive Type: 4WD Rough Terrain

Max Travel Speed: 20 mph

Frame Leveling: 10° Sway

Steering Modes: 2-Wheel, 4-Wheel, Crab Steering

Best For

Commercial constructionFraming and truss placementMasonry and block workSteel erectionMaterial handling at heightLarge-scale job sites

JCB 51056 Spec Sheet.pdf (PDF)

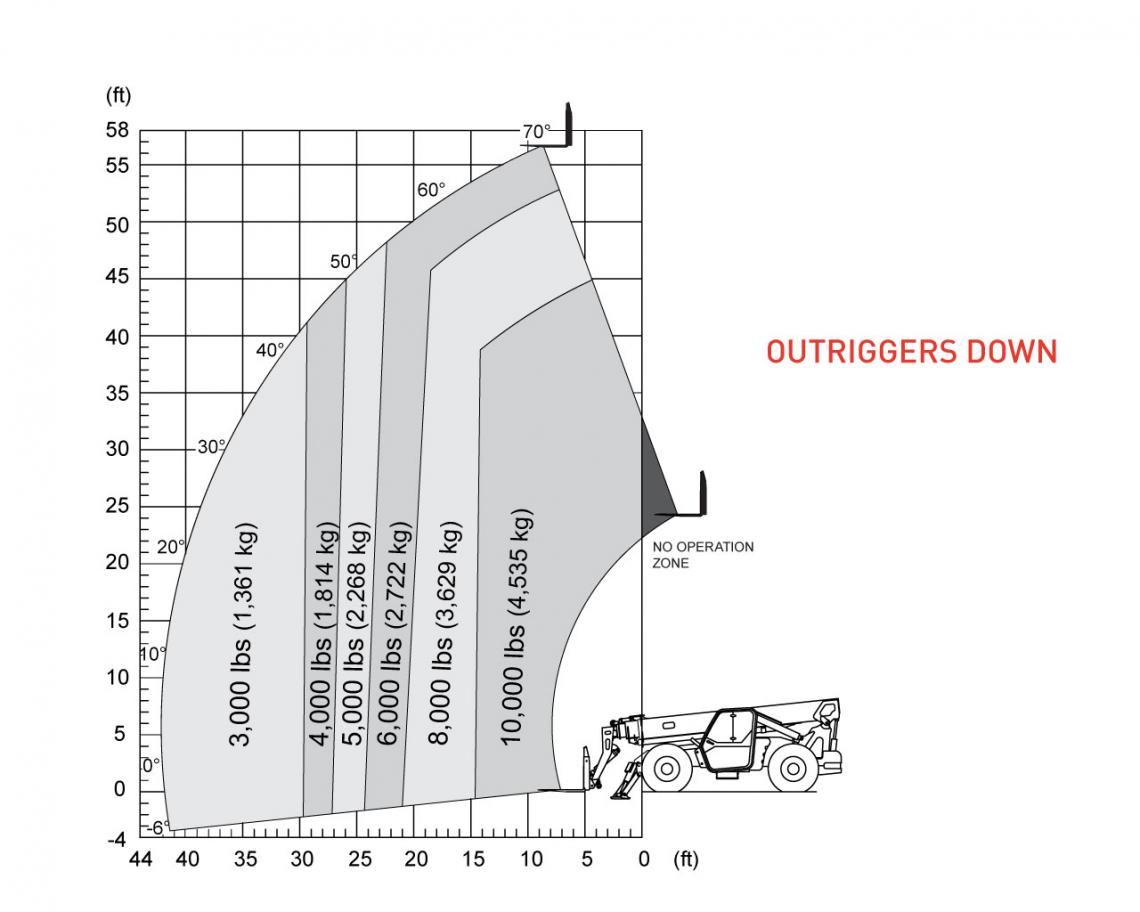

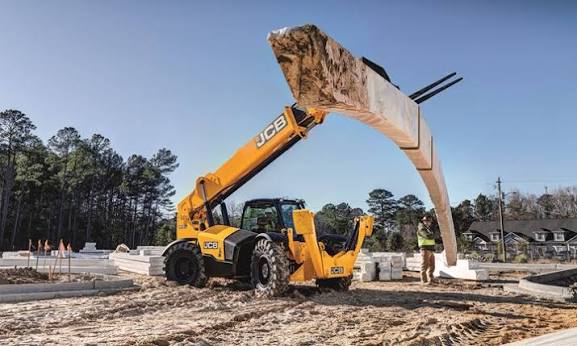

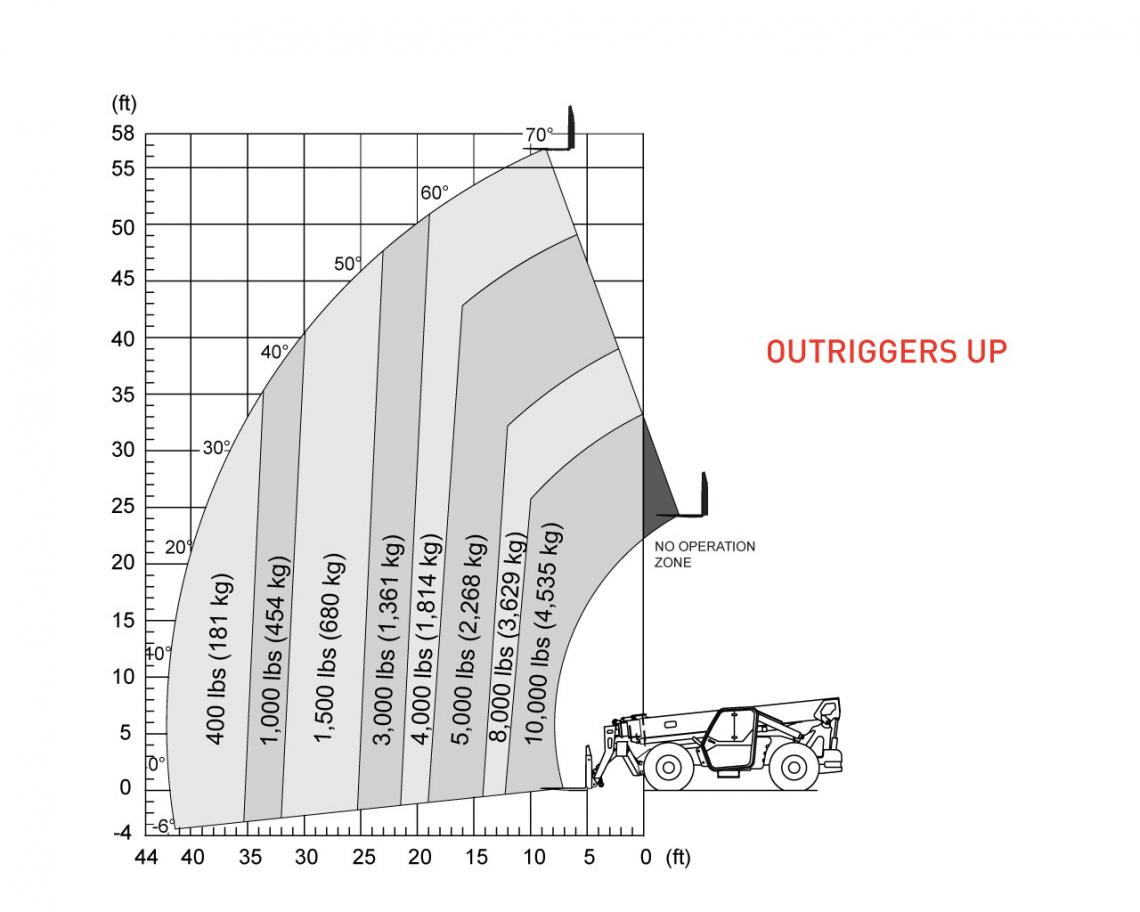

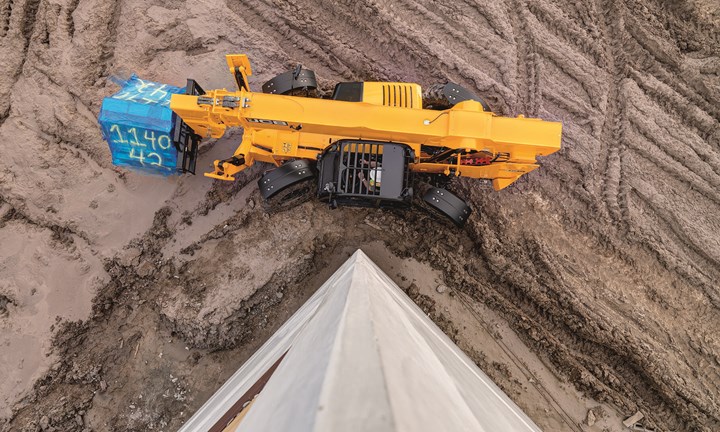

JCB 510-56 Telehandler, 10,000 lbs Reachfork, 56ft Reach — photo 1

JCB 510-56 Telehandler, 10,000 lbs Reachfork, 56ft Reach — photo 2

JCB 510-56 Telehandler, 10,000 lbs Reachfork, 56ft Reach — photo 3

JCB 510-56 Telehandler, 10,000 lbs Reachfork, 56ft Reach — photo 4

JCB 510-56 Telehandler, 10,000 lbs Reachfork, 56ft Reach — photo 5

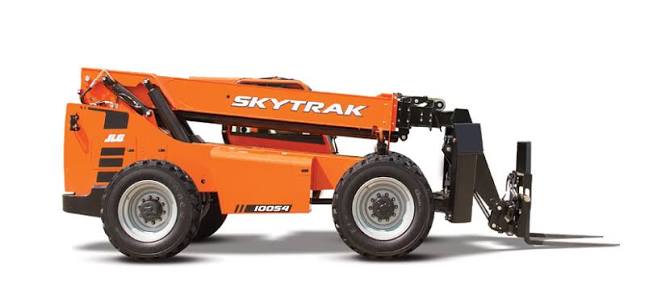

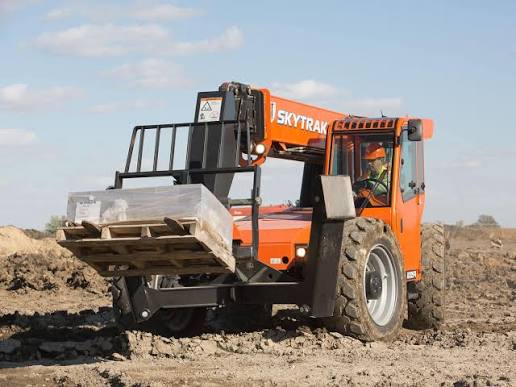

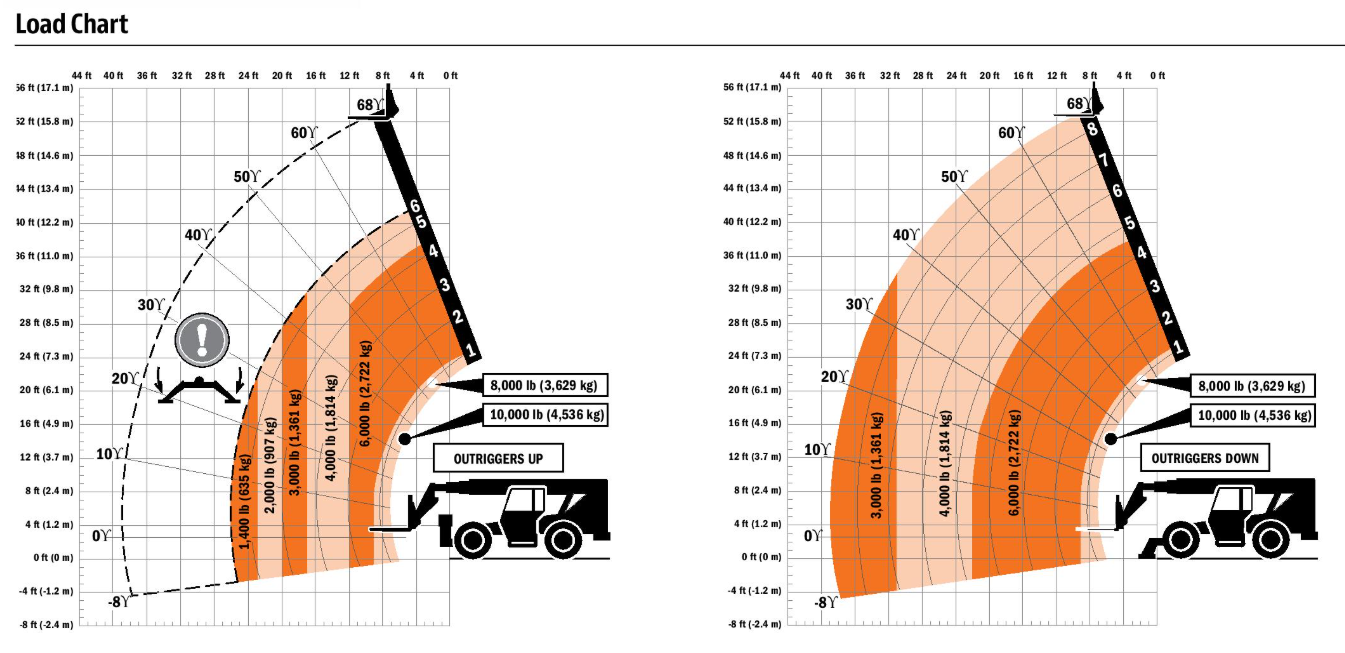

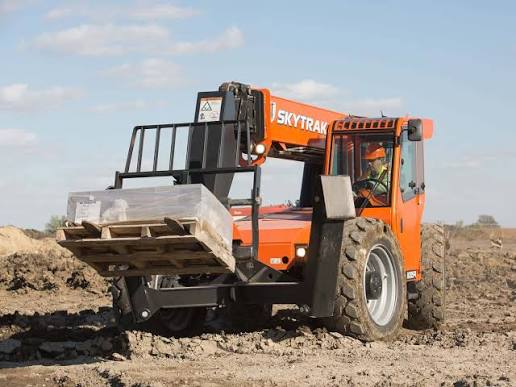

Skytrak 10054 Telehandler, 10,000 lbs Reachfork, 54 ft Reach

Skytrak 10054 Telehandler, 10,000 lbs Reachfork

Maximum Lift Height: 53 ft 2 in

Maximum Lift Capacity: 10,000 lbs

Maximum Forward Reach: 38 ft 9 in

Capacity at Max Height: 4,000 lbs

Capacity at Max Reach: 3,000 lbs

Machine Width: 8 ft 6 in

Machine Length: 21 ft

Machine Height: 8 ft 4 in

Operating Weight: 28,200 lbs

Ground Clearance: 18 in

Power Source: Diesel

Engine: Cummins QSF 3.8L Tier 4 Final (110 HP)

Drive Type: 4WD Rough Terrain

Max Travel Speed: 20 mph

Steering Modes: 2-Wheel, 4-Wheel, Crab Steering

Best For

Commercial constructionMasonry and framing projectsSteel erectionRoofing and truss placementMaterial handling at heightLarge-scale job sites

Skytrak 10054 Spec Sheet.pdf (PDF)SkyTrak Floor Loading Spec Sheet.pdf (PDF)

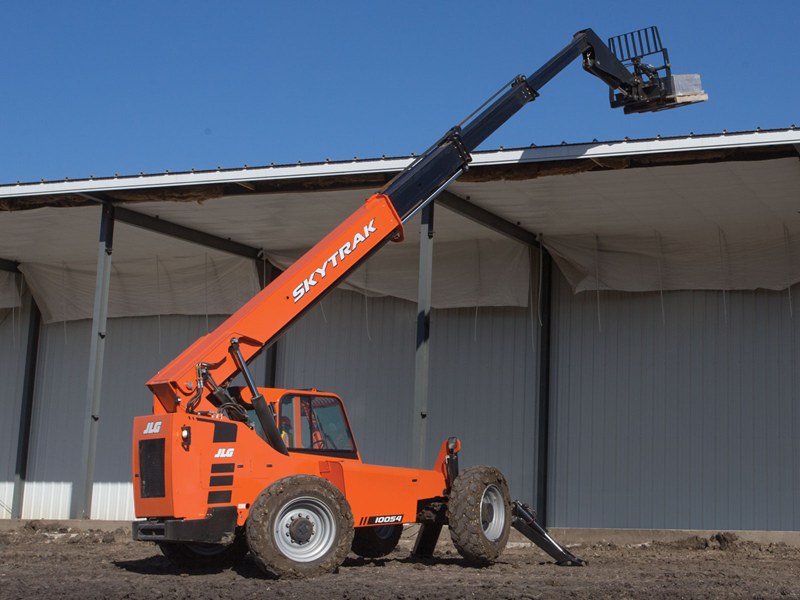

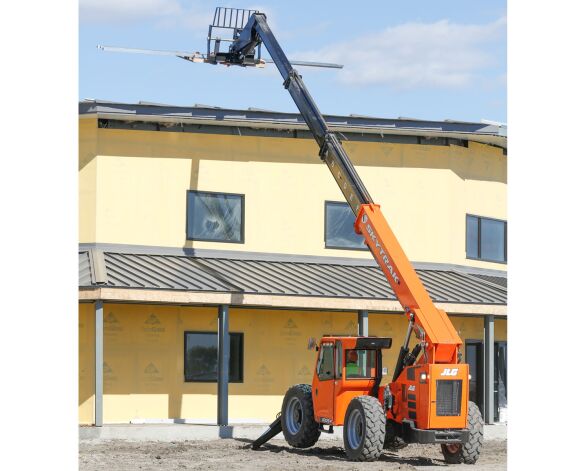

Skytrak 10054 Telehandler, 10,000 lbs Reachfork, 54 ft Reach — photo 1

Skytrak 10054 Telehandler, 10,000 lbs Reachfork, 54 ft Reach — photo 2

Skytrak 10054 Telehandler, 10,000 lbs Reachfork, 54 ft Reach — photo 3

Skytrak 10054 Telehandler, 10,000 lbs Reachfork, 54 ft Reach — photo 4

Skytrak 10054 Telehandler, 10,000 lbs Reachfork, 54 ft Reach — photo 5

Skytrak 10054 Telehandler, 10,000 lbs Reachfork, 54 ft Reach — photo 6

Skytrak 10054 Telehandler, 10,000 lbs Reachfork, 54 ft Reach — photo 7

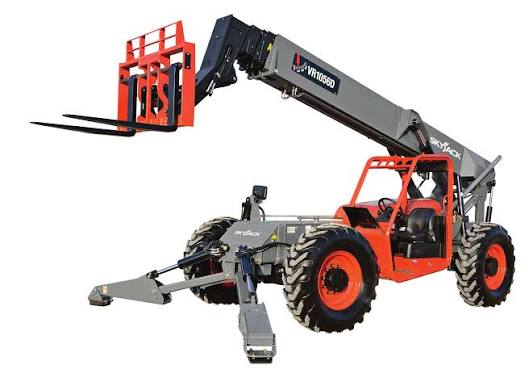

Skyjack SJ1056TH Telehandler, 10,000 lbs Reachfork, 56 ft Reach

Skyjack VR1056, 10,000lbs, 56ft Reachfork

Maximum Lift Height: 56 ft 3 in

Maximum Lift Capacity: 10,000 lbs

Maximum Forward Reach: 42 ft 6 in

Machine Width: 8 ft 5 in

Machine Length: 22 ft 2 in

Machine Height: 8 ft 1 in

Operating Weight: 31,500 lbs

Ground Clearance: 19 in

Power Source: Diesel

Engine: Deutz 3.6L Tier 4 Final (74 HP)

Drive Type: 4WD Rough Terrain

Max Travel Speed: 15 mph

Steering Modes: 2-Wheel, 4-Wheel, Crab Steering

Best For

Steel erectionCommercial constructionMasonry and framingMaterial placement at heightLarge-scale job sitesTruss and roof material handling

SKYJACK1056.pdf (PDF)

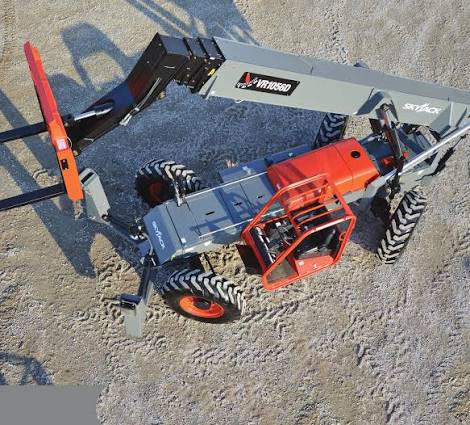

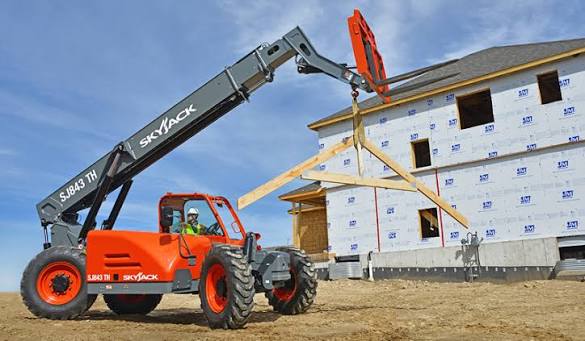

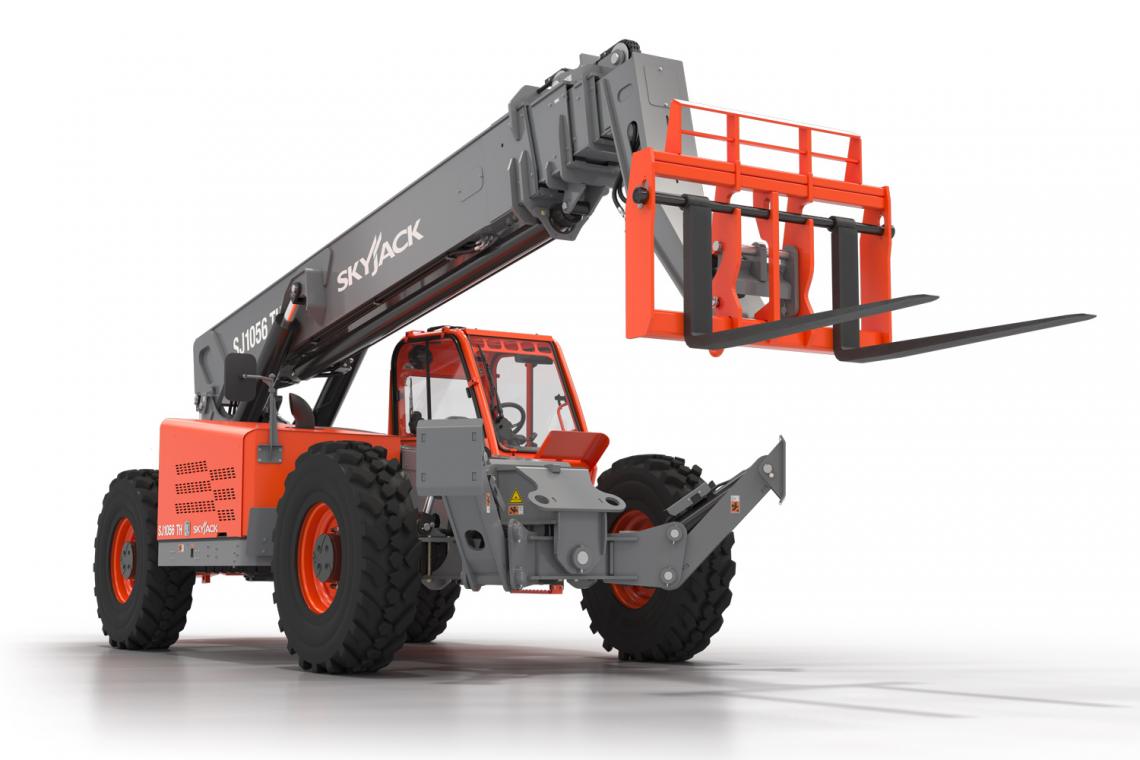

Skyjack SJ1056TH Telehandler, 10,000 lbs Reachfork, 56 ft Reach — photo 1

Skyjack SJ1056TH Telehandler, 10,000 lbs Reachfork, 56 ft Reach — photo 2

Skyjack SJ1056TH Telehandler, 10,000 lbs Reachfork, 56 ft Reach — photo 3

Skyjack SJ1056TH Telehandler, 10,000 lbs Reachfork, 56 ft Reach — photo 4

Skyjack SJ1056TH Telehandler, 10,000 lbs Reachfork, 56 ft Reach — photo 5

Skyjack SJ1056TH Telehandler, 10,000 lbs Reachfork, 56 ft Reach — photo 6
