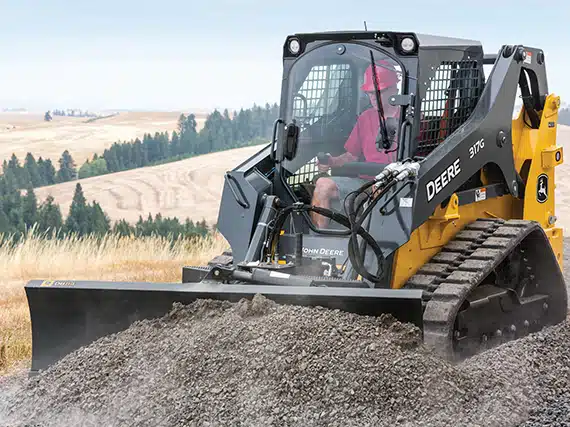

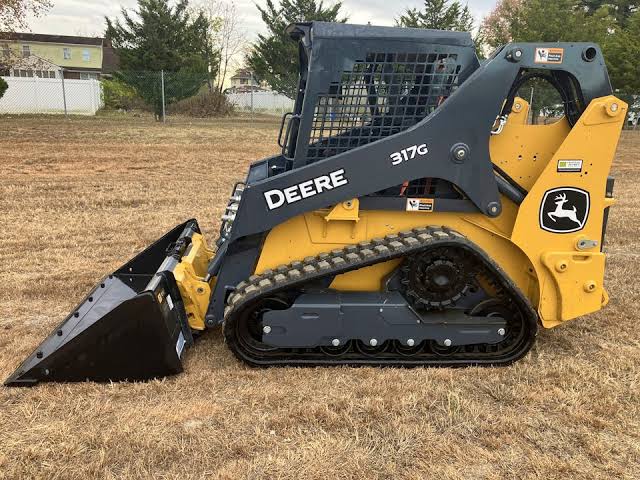

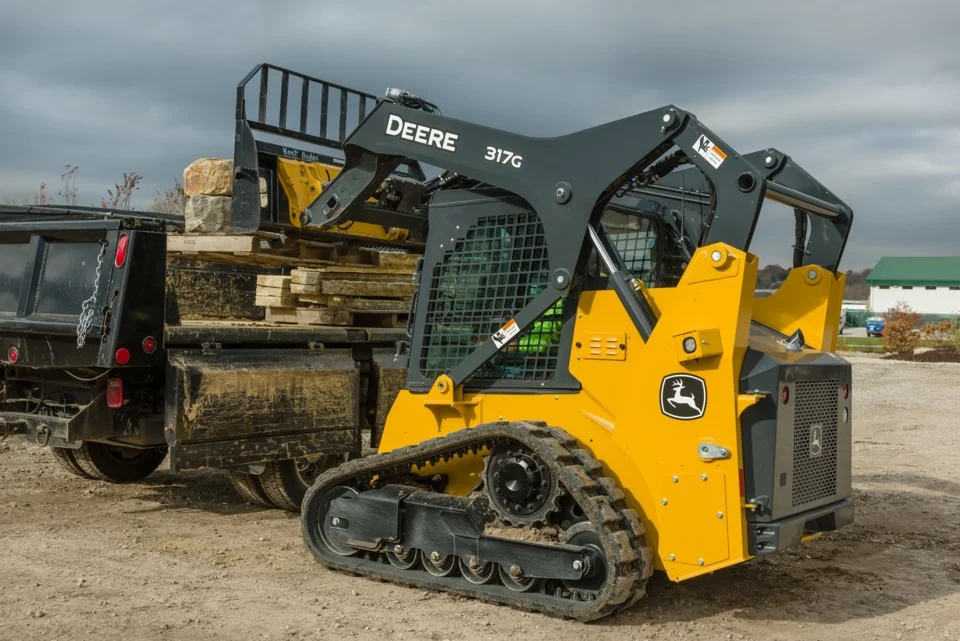

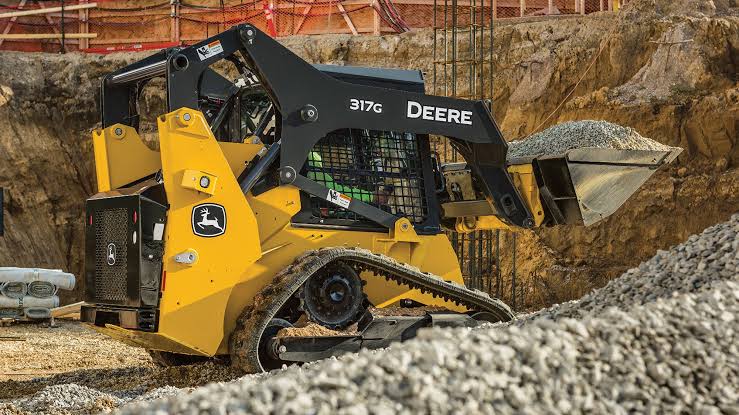

John Deere 317G Rubber Tracked Skid Steer
John Deere 317G Rubber Tracked Skid Steer
Equipment Type: Compact Track Loader (Rubber Track Skid Steer)
Rated Operating Capacity: 2,125 lbs
Tipping Load: 6,070 lbs
Bucket Breakout Force: 6,000 lbs
Operating Weight: 8,420 lbs
Engine: Yanmar 4TNV86CHT Turbo Diesel
Gross Horsepower: 65 HP
Net Horsepower: 61 HP
Fuel Tank Capacity: 19 gal
Lift Type: Vertical Lift
Hinge Pin Height: 121 in (10 ft 1 in)
Dump Height: 95.6 in
Dump Reach: 31 in
Machine Width: 65.1 in
Machine Length (with bucket): 127.6 in
Machine Height: 78.5 in
Ground Clearance: 8.3 in
Track Width: 12.6 in
Travel Speed: 7.0 mph
Ground Pressure: 5.5 psi
Hydraulic Flow: 17 GPM Standard Flow
Hydraulic Pressure: 3,450 PSI
Best For
Loading and material handlingGrading and site preparationLandscaping projectsDirt and aggregate movingFork work and pallet handlingGeneral construction applications
