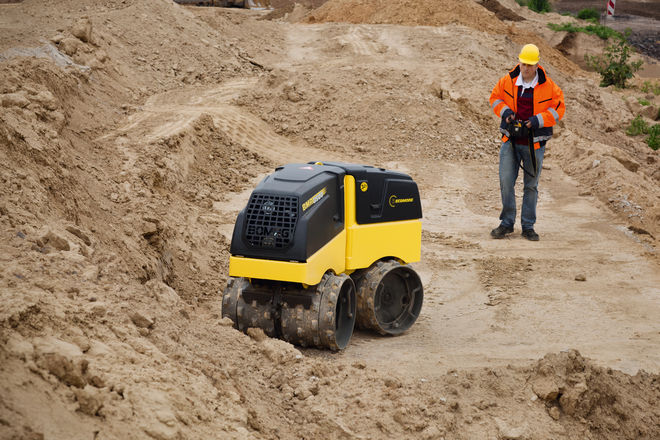

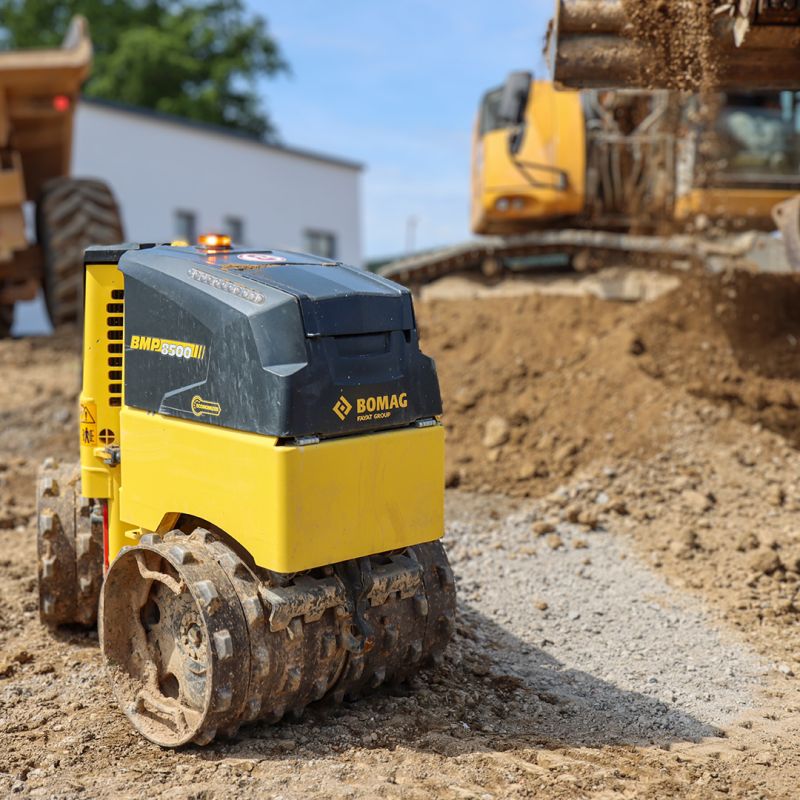

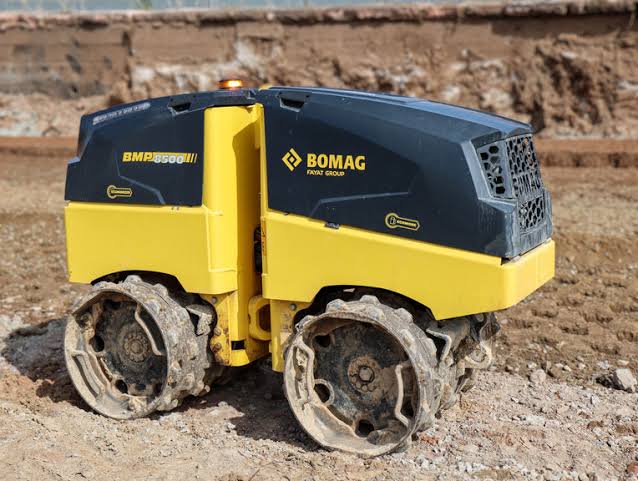

Bomag Trench Roller BMP8500
Bomag Trench Roller BMP8500
Equipment Type: Remote-Controlled Trench Roller
Operating Weight: 3,516 lbs (1,595 kg)
Working Width: 24 in / 33.5 in (610 mm / 850 mm) Adjustable
Drum Diameter: 20.5 in (520 mm)
Machine Length: 74.7 in (6 ft 3 in)
Machine Width: 33.5 in (850 mm)
Machine Height: 50.2 in (4 ft 2 in)
Engine: Kubota D1005 Diesel
Engine Power: 19.4 HP (14.5 kW)
Fuel Tank Capacity: 6.3 gal (24 L)
Travel Speed: 0.8 mph / 1.6 mph (Two-Speed Drive)
Gradeability: 55% (without vibration) / 45% (with vibration)
Frequency: 42 Hz
Amplitude: 0.56 mm / 1.12 mm (Selectable)
Centrifugal Force: 8,093 lbf / 16,186 lbf (36 / 72 kN)
Steering: Hydrostatic Articulated Steering
Drive System: Hydrostatic Dual Drum Drive

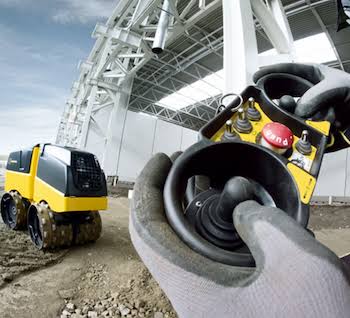

Control System: Radio Remote Control with BOSS Operator Safety System
Best For
Trench compactionUtility and pipeline installationSewer constructionFoundation backfillRoad and site developmentCompaction in confined spaces
