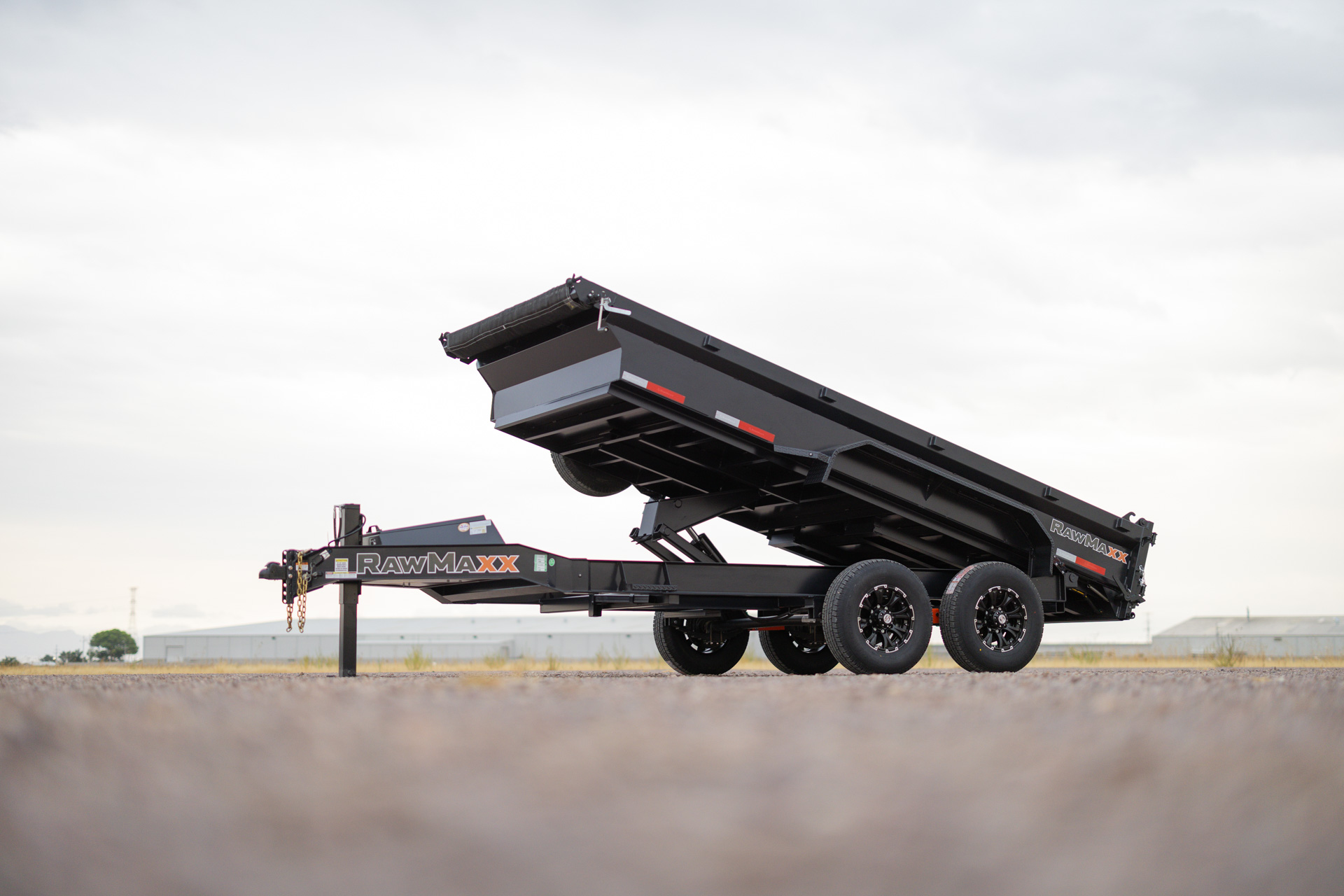

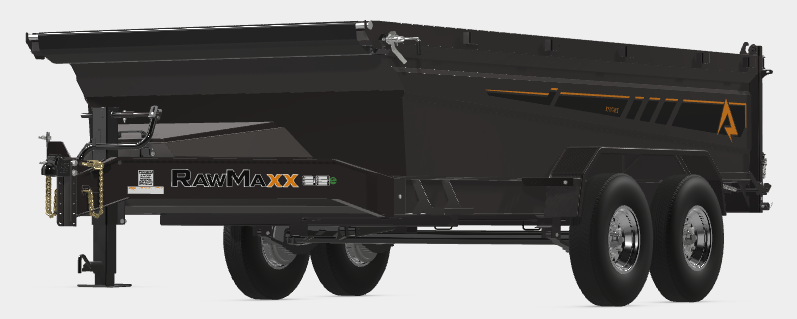

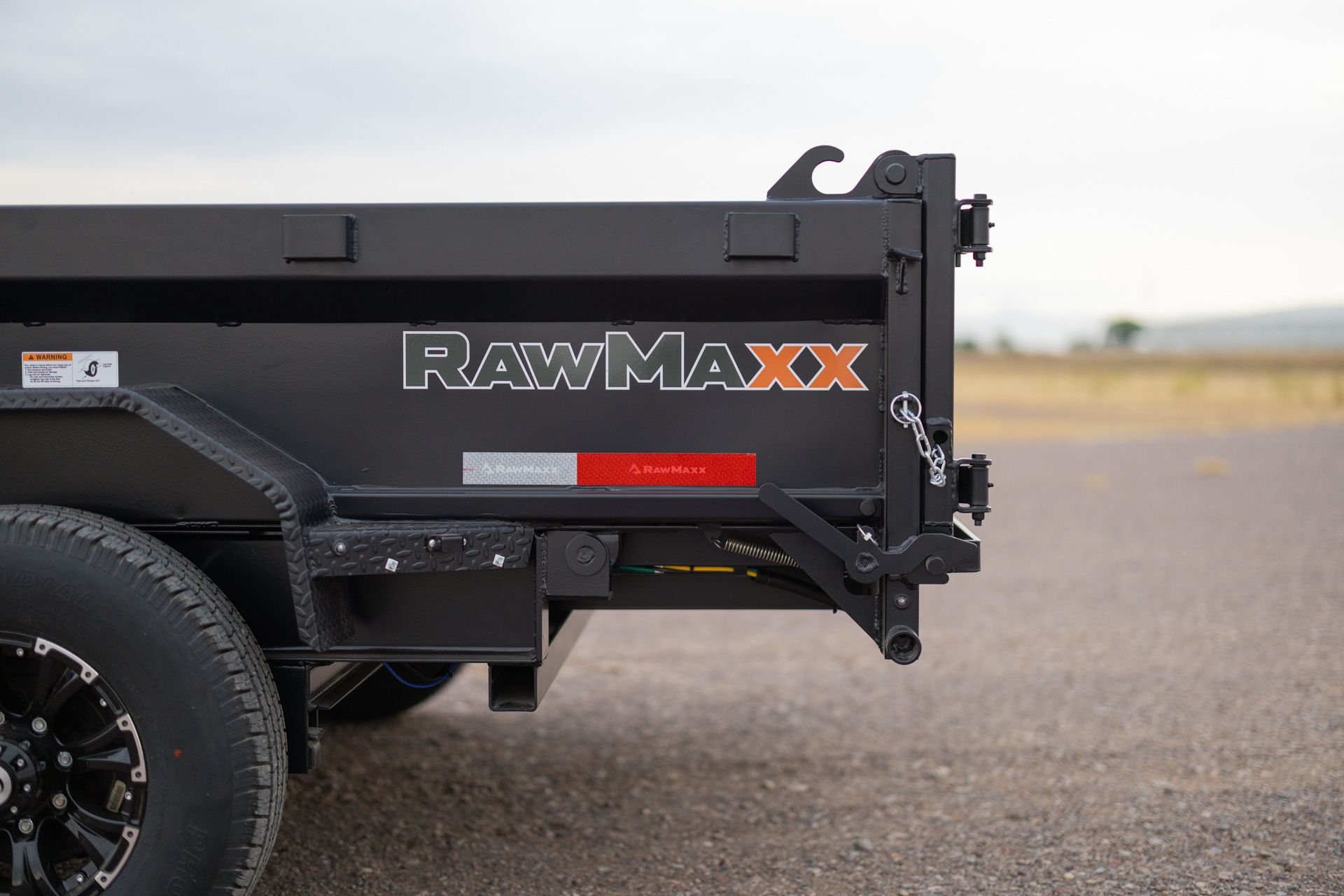

14,000 lbs, 14ft Tandem Axle Dump Trailer

Trailer Type: Tandem Axle Hydraulic Dump Trailer

GVWR: 14,000 lbs

Payload Capacity: 10,800 lbs

Empty Weight: 4,600 lbs

Bed Length: 14 ft

Inside Width: 83 in

Side Height: 19 in

Capacity: 5.8 Cubic Yards

Deck Height: 28 in

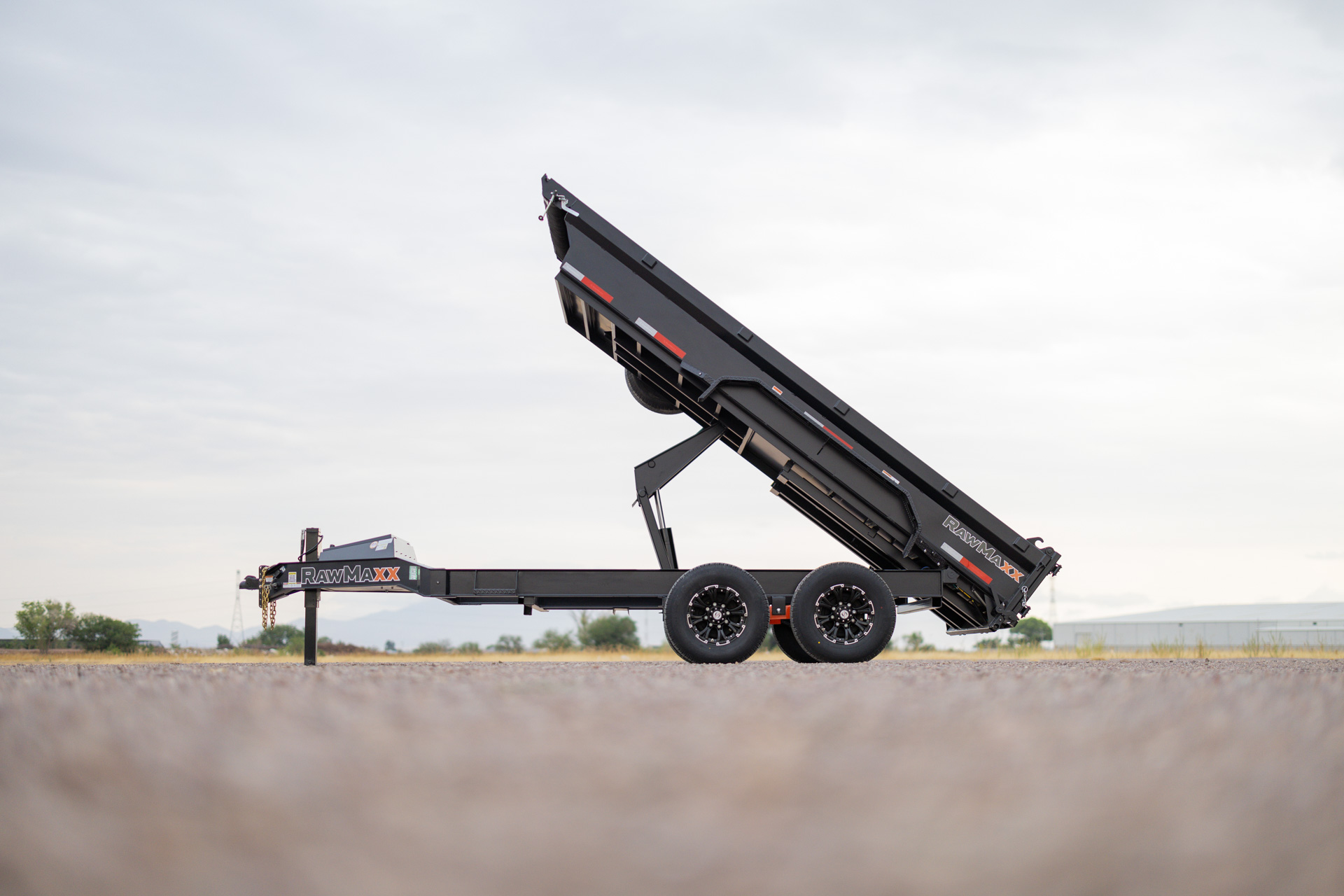

Dump Angle: 41°

Lift System: Heavy-Duty Scissor Hoist

Cylinder: 5" × 16" Hydraulic Cylinder

Frame: 8" × 13 lb I-Beam Frame & Tongue

Crossmembers: 3" Channel on 16" Centers

Floor: 9-Gauge Steel Floor

Sides: 12-Gauge Formed Steel Walls

Axles: (2) 7,000 lb Dexter Electric Brake Axles

Suspension: Leaf Spring

Brakes: Electric Brakes on Both Axles

Tires: ST235/80R16 10-Ply Radials

Wheels: 16" Black Steel Wheels

Coupler: Adjustable 2-5/16" Ball Coupler

Jack: 10,000 lb Drop Leg Jack

Ramps: 6 ft Slide-In Channel Ramps

Rear Gate: 3-Way Combo Gate (Spreader / Barn Door / Dump)

Hydraulic Pump: KTI 12V Power Up / Power Down

Battery: Deep Cycle Marine Battery

Charger: Integrated 110V Trickle Charger

Features: Manual Tarp Kit, Lockable Toolbox, Stake Pockets, Welded D-Rings, LED Lighting, Breakaway System

Best For

Dirt, gravel, and aggregate haulingConcrete and demolition debrisLandscaping materialsSkid steer transportMini excavator transportGeneral construction projects
