Genie Z45/25J, 45ft Knuckle Boom Lift, 4WD
Genie Z45/25J, 45ft Knuckle Boom Lift, 4WD
Working Height: 51 ft 9 in
Platform Height: 45 ft 9 in

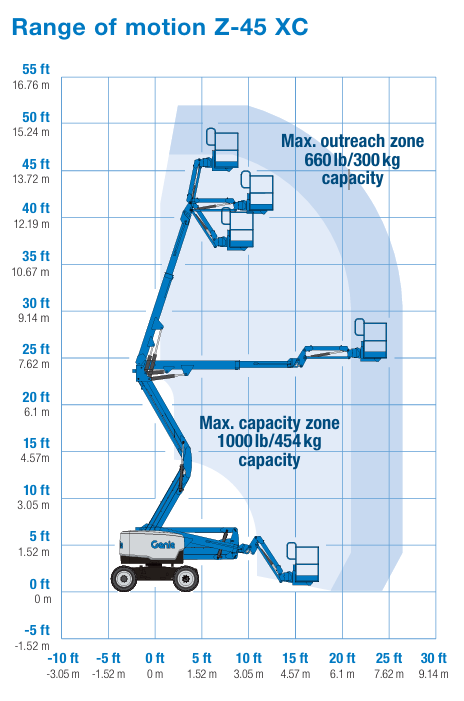

Horizontal Reach: 25 ft 1 in
Up-and-Over Height: 23 ft 9 in
Platform Capacity: 500 lbs
Machine Width: 5 ft 10 in
Machine Length: 22 ft 5 in
Stowed Height: 6 ft 7 in
Operating Weight: 16,300–16,800 lbs
Power Source: Electric / Bi-Energy (varies by model)
Drive Type: 2WD
Platform Rotation: 160°
Jib Rotation: 135°
Turntable Rotation: 355° Non-Continuous
Best For
Indoor and outdoor maintenanceCommercial constructionElectrical and HVAC installationFacility maintenanceAccessing hard-to-reach areasApplications requiring up-and-over reach
