Model reference specifications and photos. Confirm the exact model, configuration and availability with Apache. Ratings may vary by model year and options; use the machine’s approved manual and load chart. Catalog names can differ from detailed model ratings.

Wylie EXP-500-S, 500 gallon Towable Water Wagon

Equipment Type: Towable Water Wagon / Water Trailer

Tank Capacity: 500 Gallons

Tank Material: UV-Stabilized Polyethylene with Internal Baffles

Trailer Type: Tandem Axle Water Trailer

GVWR: 7,000 lbs

Empty Weight: Approximately 1,900 lbs

Loaded Weight: Approximately 6,100 lbs

Overall Length: 15 ft 8 in

Overall Width: 6 ft 6 in

Overall Height: 6 ft 8 in

Frame: Heavy-Duty 6" Channel Iron Frame

Axles: (2) 3,500 lb Axles

Brakes: Electric Brakes

Pump: 2" Centrifugal Pump

Engine: Honda GX120 Gas Engine

Engine Power: 4 HP

Pump Capacity: Up to 140 GPM

Spray Bar Width: 8 ft Galvanized Rear Spray Bar

Hose Reel: Included

Fire Hose: 25 ft x 1.5 in Hose with Nozzle

Hitch Type: Adjustable Height 2-5/16" Ball Coupler

Tires: ST205/75R15 Radial Tires

Features: Internal Baffles, Rear Spray Bar, Fire Hose & Nozzle, Hydrant Fill Adapter, Diamond Plate Fenders, DOT Lighting Package

Best For

Dust control and suppressionSoil compaction supportRoad construction projectsConcrete cutting operationsLandscaping and irrigationConstruction site water supply

Wylie EXP500 Water Wagon.pdf (PDF)

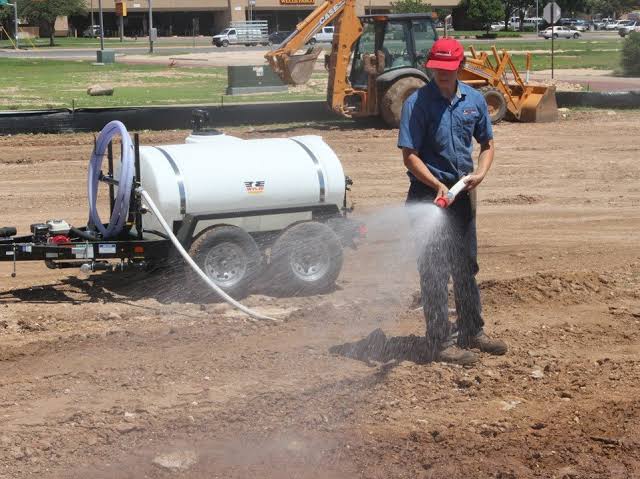

Wylie EXP-500-S, 500 gallon Towable Water Wagon — photo 1

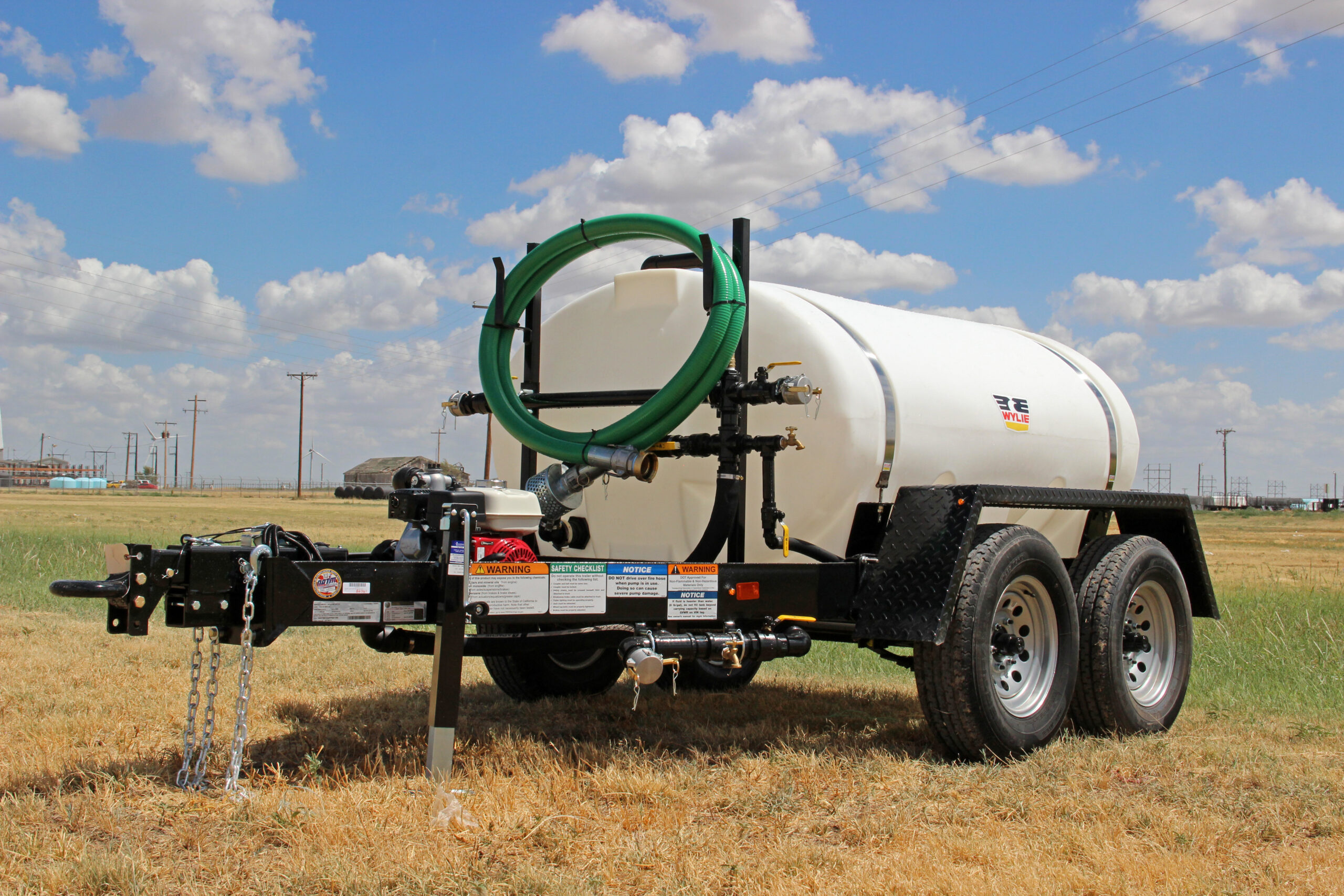

Wylie EXP-500-S, 500 gallon Towable Water Wagon — photo 2

Wylie EXP-500-S, 500 gallon Towable Water Wagon

Wylie EXP-500-S, 500 gallon Towable Water Wagon
